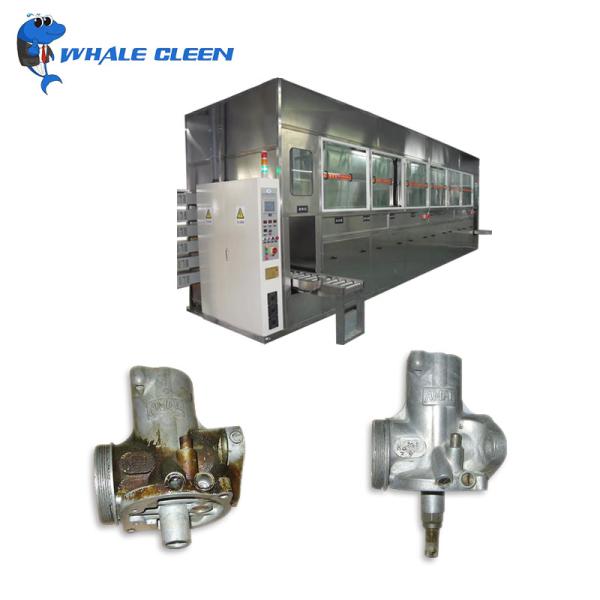

Automatic Ultrasonic Cleaner Machine With Mechanical Arm For Semiconductor With 2.4KW Ultrasonic Power
Product Features:
1.The use of independent computer control robotic arm automation operations;
2.The slot configuration of independent parabolic system, increase the silicon and solvent friction.
3. Each slot is equipped with bubbling pipe, which is made of PFA pipe fittings.
4. Cooling coil pipe is arranged in the acid tank to reduce the evaporation of acid solvent; ridge type cylinder head is arranged to prevent acid vapor from being released into the air, and a spray system is arranged on the cylinder head.
5. The trough body of the equipment is made of PVDF 6mm plate with strong acid and alkali resistance.
6. the third generation of the latest technology, comprehensive anti-acid and anti-corrosion measures to protect every corner of the machine.
7. the latest automatic rehydration technology, to achieve centralized acid supply and discharge. Equipped with water pan to prevent tank leakage from polluting the workshop environment. Color bigsize screen man-machine interface operation, convenient parameter setting and multi-process conversion.
This product support non-standard custom, can provide design drawings and cleaning program.
Product details:
Blue whale semi-conductor with mechanical arm fully automatic ultrasonic cleaning machine semi-conductor ultrasonic cleaning machine work flow: the basket containing the product is placed on the automatic feeding table, the PLC controlled feeding system is positioned, then through the cooperation of the lifting mechanism and the translation mechanism, the Longmen manipulator is sent to each working procedure step by step to clean, rinse, dehydrate and dry the workpiece in each working procedure step, through the transmission, the washing basket is automatically sent out and the washing basket is manually unloaded to complete the whole washing process.
The cleaning part of the whole machine is completely closed structure, equipped with detachable inspection door. Equipment power distribution facilities for the independent electronic control cabinet placed in the feed port position.
After years of design and manufacturing experience, the structure is reasonable, and equipped with ultra-pure water equipment as a clean water source is an ideal high-cleanliness cleaning equipment. The Semiconductor industry is the heart of the modern electronics industry, and the Semiconductor industry is based on the silicon industry. Although a variety of new List of semiconductor materials are emerging, more than 90% of semiconductor device and circuits, very-large-scale integration, in particular, is made on high purity, high quality silicon wafers and epitaxial wafers.
Application:
Automatic ultrasonic cleaning machine with mechanical arm for semiconductor,mainly used in machinery, electronics, jewelry, optics, medicine, painting, steam and vacuum coating pre-treatment and other related categories.For the surface shape of complex parts, such as the parts above the groove, slit, blind hole, deep hole cleaning has an efficient and rapid cleaning role. At the same time, the utility model can clean the oil, rust and oxide on the surface of the parts, and realize one-stop processing of cleaning, spraying and drying.
Detail Information Of z-x 48:
| Specifications for ultrasonic cleaner z-x48 |
| Model | Z-X48 |
| Tank capacity | 175L |
| Tank size | 700*500*500mm |
| Tank material | SUS304 Or SUS316 |
| Ultrasonic power | 2400W |
| Heating power | 6KW |
| Timer | 1-99h adjustable |
| Heater | 0-95c adjustable |
| Frequency | 40khz |
| Control | Outside generator, more stable |
| Optional | Oil filter system, pneumatic lift, rinsing tank, etc. |
| Voltage | 380V/415V, 3phases |
| Warranty | 1 year |
| Packing | 1unit/wooden case
|
Cleaning Effect:
Introduction Of Ultrasonic Cleaner Theory:
Cavitation is the key factor of ultrasonic cleaner theory. Cavitation is caused by fast crack of millions of bubble in a very short time. This process will be generated when ultrasonic wave(Vibration over 20KHz) came into cleaning liquid. When cavitation happen, it will generate strong pressure on the surface of cleaning parts which can take away the dirt in micro type.
FAQ:
1. What is Ultrasonics?
The science of ultrasonics is the study and application of mechanical vibrations above the range of human hearing—typically greater than 18,000 HZ.
2. What are the advantages of ultrasound over traditional cleaning methods?
minimize the use of manual labor
make cleaning and degreasing without the use of organic solvents
clean hard to reach areas of products and remove all types of dirt
shorten the processes such as extraction, dispersion, purification, chemical reactions
eliminates costly mechanical and chemical cleaning of heat exchangers
3. What cleaning solution should I use?
A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.
4. Can ultrasonic cleaning damage parts?
Ultrasonic cleaning is considered safe for most parts; although in some cases it is necessary to observe caution. Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.
